| Number | The product name | specifications | Parameters |
| The weight（kg） | Overall dimensions | processing | power | Equipment function |

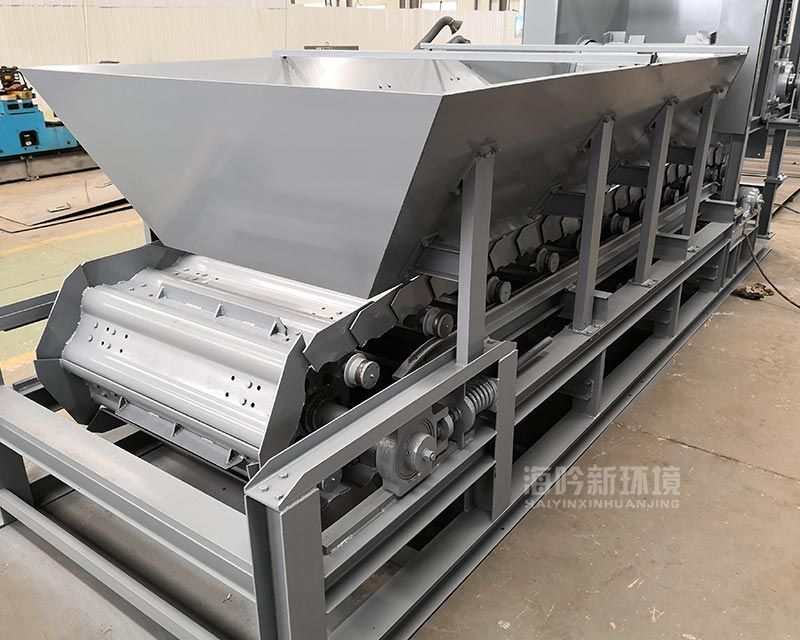

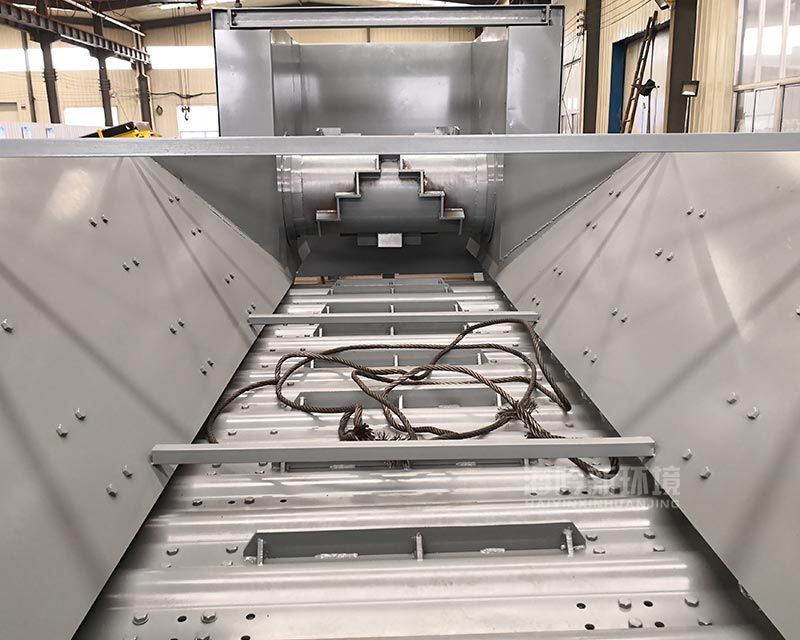

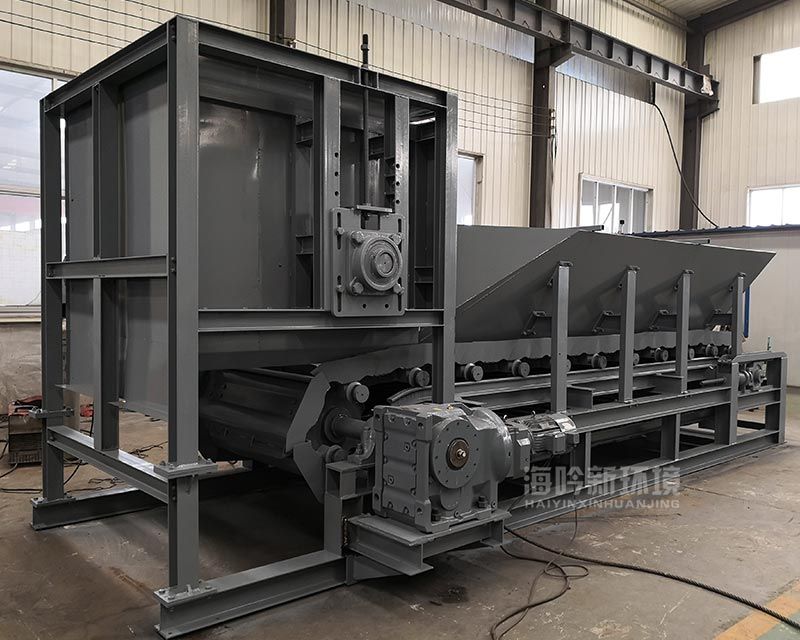

| 1 | Chain plate conveyor | HLB14 |
| 1400*长度 | 30-45tons/h | 4.5-11kW | It is suitable for unloading, storing and cloth of original rubbish. The width of the chain board machine can be selected according to the user's requirements. |
| HLB18 |
| 1800*长度 | 45-60tons/h | 5-11kW |
| HLB20 |
| 2000*长度 | 60-75tons/h | 7.5-11kW |
| HLB22 |
| 2200*长度 | 75-80tons/h | 7.5-18.5kW |
| 3 | Belt conveyor | HU800 |
| 800*长度 | 15-20tons/h | 3-11kW | Waste transport necessary, all closed structure. Width, speed according to the user's requirements. German structure, new structure. Large throughput, durable. |
| HU1000 |
| 1000*长度 | 20-25tons/h | 3-11kW |
| HU1200 |
| 1200*长度 | 25-30tons/h | 3-11kW |
| HU1400 |
| 1400*长度 | 35-40tons/h | 3-11kW |
| 4 | sorting conveyor. | HPL1000 |
| 1000*长度 | 15-20tons/h | 3-11kW | Manual sorting room conveyor belt, speed adjustable, German structure, smooth operation. |
| HPL1200 |
| 1200*长度 | 20-25tons/h | 3-11kW |
| 5 | Drum screen | HGTS1806 | 12000 | 6000mm | 20-30tons/h | 18.5kW | The necessary garbage screening, the screen plate can be replaced according to different materials, German structure, can do multistage screening, fully closed structure, three-in-one drive form. |
| HGTS2508 | 15000 | 8000mm | 30-40tons/h | 18.5kW |
| HGTS3010 | 25000 | 10000mm | 40-60tons/h | 37kW |
| 6 | Air sorter Horizontal positive pressure selection | HZFX10 |
|
| 15-20tons/h | 55.75kW | Garbage heavy and light material separation artifact.It is divided into feeding system, discharging system, settling room, fan system, electric control system and dust removal system. The air selection effect is good. |
| HZFX12 |
|
| 20-25tons/h | 55.75kW |
| HZFX16 |
|
| 25-30tons/h | 80kW |
| HZFX20 |
|
| 35-40tons/h | 80kW |
| 7 | Chi zhang screen | HCZS5015/08 | 3800 | 6325×2255×1446 | 15-20tons/h |
| Waste organic matter and ash soil separation tool, suitable for different particle size material screening, special loose net plate, make material jump on the screen body, material screening effect is good. |
| HCZS5015/25 | 3800 | 6325×2255×1446 | 20-40tons/h |
|
| 8 | Unloading station | HKNSSJ10 |
| 1000*长度 | 15-20tons/h | 3-11kW*2 | Waste reversible conveyor, suitable for material bidirectional separation, convenient material receiving, transfer。 |
| HKNSSJ12 |
| 1200*长度 | 20-25tons/h | 3-11kW*2 |
| HKNSSJ14 |
| 1400*长度 | 25-30tons/h | 3-11kW*2 |
| 9 | All machine | HJLJ14 |
|
|
| 11kW | Federal conveyor supporting use, effectively prevent the material one-time blanking, torque, good effect. |
| HJLJ16 |
|
|
| 11kW |
| HJLJ18 |
|
|
| 22kW |
| HJLJ20 |
|
|
| 22kW |
| 10 | Broken bag machine | HPDJ12 |
|
|
| 7.5kW*2 | The primary broken bag function of the original waste, effectively broken bags, so that the material better screening. |
| HPDJ14 |
|
|
| 7.5kW*2 |
| HPDJ16 |
|
|
| 11kW*2 |
| HPDJ18 |
|
|
| 11kW*2 |
| 11 | RDF molding machine | HRDF01(O) |
|
| 1.5-2tons/h | 90kW | Organic matter, straw, biomass molding artifact, effective saving material storage, molding density is good, and in storage. Forming of physical properties, avoid heating, hot melt, improve the production environment. |
| HRDF02(T) |
|
| 1.5-2tons/h | 55kW*2 |
